Erection Sequence - Production

Modified on Mon, May 18 at 7:25 PM

Overview

The Erection Sequence screen, accessed through the Production module, displays:

the erection sequence either by piece mark or Control number for a job
the status of piece marks in a job
load number of piece mark
delivery date of a load

Production Managers can reference the erection sequence, load numbers, and the delivery dates to schedule the pours of piece marks within a job. Pieces with a backlog status can be added to a pour from this screen.

Accessing the Screen

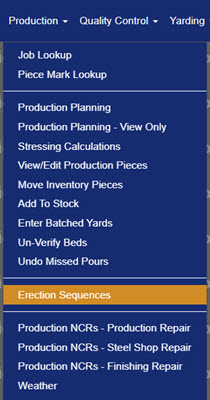

Navigate to Production >Erection Sequences from the main menu (Figure 1).

Figure 1

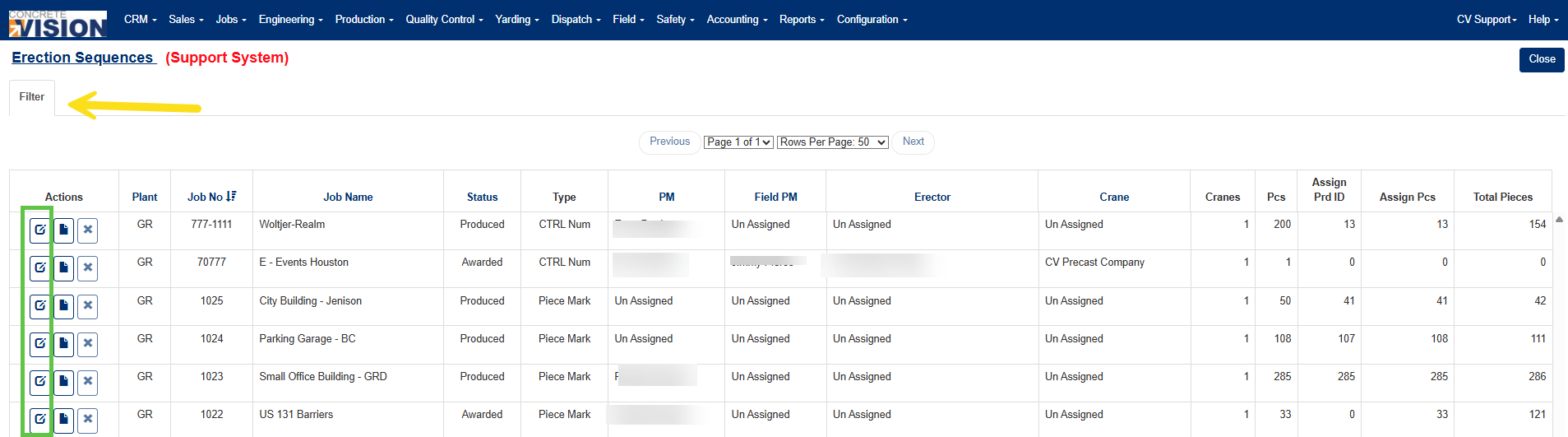

From the Erection Sequences screen (Figure 2), locate the job from the displayed job list. The Filter tab (yellow arrow in Figure 2) can be used to quickly locate a specific job.

Figure 2

Click the Edit icon (Green box, Figure 2) of the corresponding job to view any scheduled erection sequence.

Erection Sequence Screen

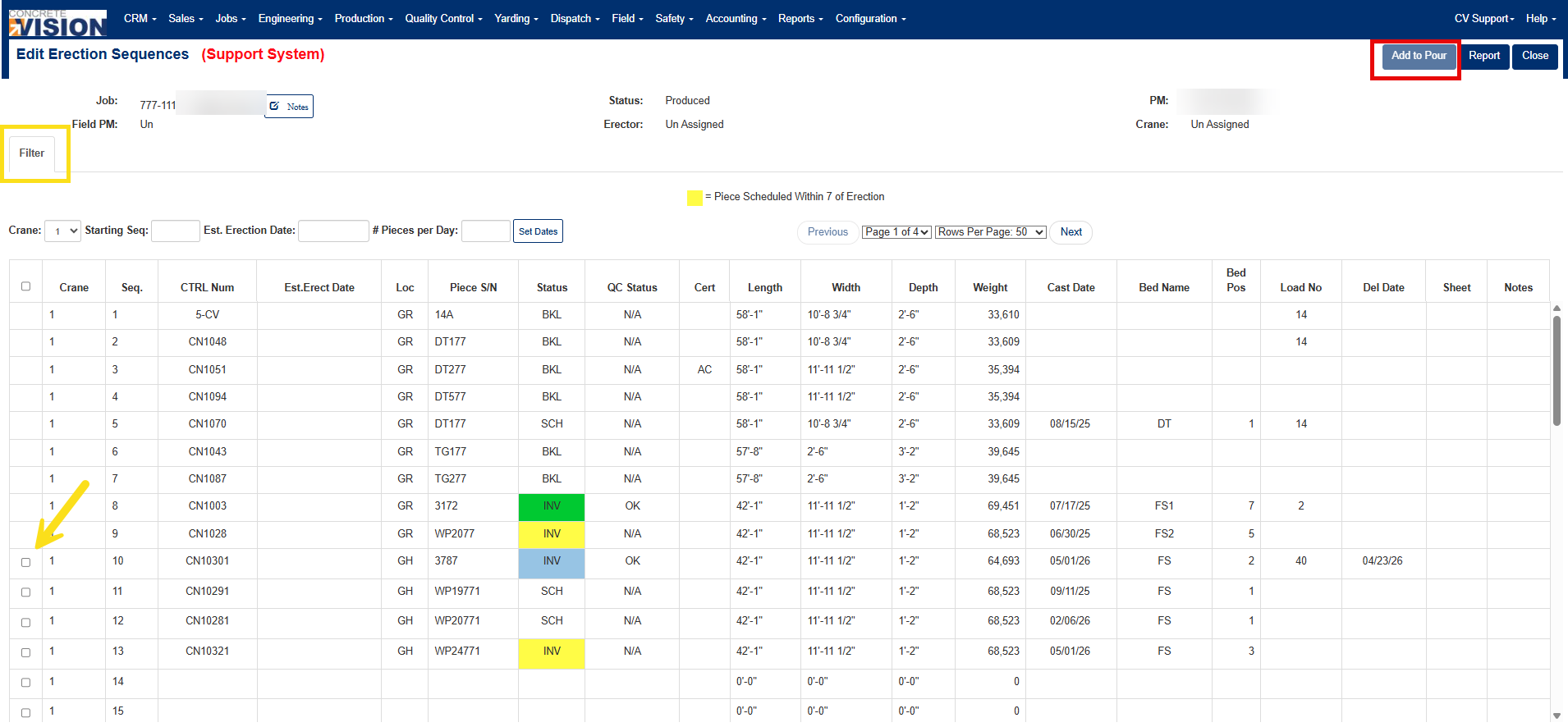

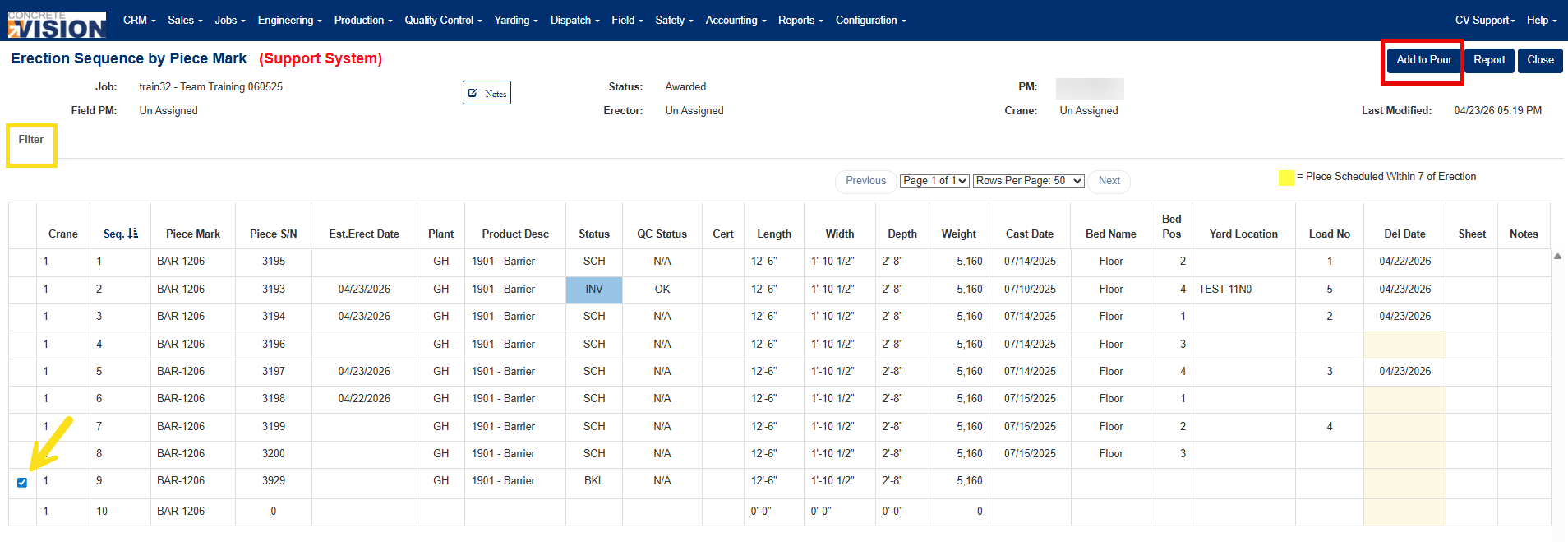

The Erection Sequence by Piece Mark screen (Figure 3) displays a table of all piece marks within a job while the Edit Erection Sequence screen (Figure 4) displays a table of all pieces by Control number within a job.

Figure 3

Column	Description
Blank	A checkbox that appears when a piece mark's status qualifies it to be added to a pour.
Crane	The crane assigned to erect the piece mark.
Seq.	The piece mark's position in the erection sequence.
Piece Mark	The piece mark number along with its associated drawing.
Piece S/N	The serial number assigned to the piece mark.
Est. Erect Date	The anticipated date the piece mark is scheduled to be erected.
Plant	The plant location responsible for pouring or that has already poured the piece mark.
Product Desc.	A brief description identifying the piece mark.
Status	The current status of the piece mark.
QC Status	The current quality control status of the piece mark.
Cert	The certification number assigned to the piece mark.
Length	The length of the piece mark.
Width	The width of the piece mark.
Depth	The depth of the piece mark.
Weight	The weight of the piece mark.
Cast Date	The date on which the piece mark was cast or poured.
Bed Name	The name of the bed where the piece mark will be or has been poured.
Bed Pos	The position on the bed where the piece mark will be or has been poured.
Yard Location	The storage location of the piece mark within the yard, if applicable.
Load No	The designated load number for the piece mark's delivery.
Del Date	The scheduled delivery date of the piece mark to the job site.
Sheet	The drawing sheet on which the piece mark appears, indicating its placement within the structure.
Notes	Any additional notes or remarks associated with the piece mark.

Figure 4

Column	Description
Blank	A checkbox that appears when a piece mark's status qualifies it to be added to a pour.
Crane	The crane assigned to erect the piece mark.
Seq.	The piece mark's position in the erection sequence.
CTRL Num	The control number associated with the piece.
Est. Erect Date	The anticipated date the piece mark is scheduled to be erected.
Loc	The plant location responsible for pouring or that has already poured the piece mark.
Piece S/N	The serial number assigned to the piece mark.
Status	The current status of the piece mark.
QC Status	The current quality control status of the piece mark.
Cert	The certification number assigned to the piece mark.
Length	The length of the piece mark.
Width	The width of the piece mark.
Depth	The depth of the piece mark.
Weight	The weight of the piece mark.
Cast Date	The date on which the piece mark was cast or poured.
Bed Name	The name of the bed where the piece mark will be or has been poured.
Bed Pos	The position on the bed where the piece mark will be or has been poured.
Load No	The designated load number for the piece mark's delivery.
Del Date	The scheduled delivery date of the piece mark to the job site.
Sheet	The drawing sheet on which the piece mark appears, indicating its placement within the structure.
Notes	Any additional notes or remarks associated with the piece mark.

Adding a Piece Mark to a Pour

A production manager can reference the information from the Erection Sequence by Piece Mark or Edit Erection Sequence screen to make a decision on adding pieces with a status of backlog (BKL) to an already scheduled pour.

Locate the checkbox in the left-most column in the piece mark table (Yellow arrow, Figures 3&4).
Check the piece(s) to add to the pour.
Click the Add to Pour button (Red box, Figures 3&4).

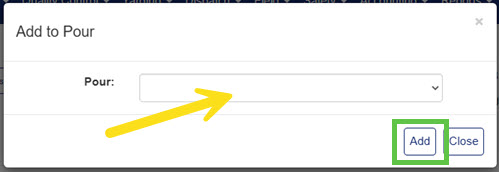

Select the scheduled pour from the dropdown (Yellow arrow, Figure 5) to add the piece mark to.
Click the Add button (Green box, Figure 5).

The Cast Date column for the piece mark will now display the scheduled pour date, and the piece status will be updated to scheduled (SCH).

Note: The Add to Pour button remains inactive until at least one checkbox in the leftmost column is selected. Checkboxes will only appear in the table for piece marks that have a status of BKL; if none exist, no checkboxes will be displayed.

Figure 5

Filtering the Erection Sequence by Piece Mark Screen

Larger jobs will display long lists of piece marks. To find specific piece marks quickly, use the Filter tab on the Erection Sequences by Piece Mark screen.

Click on the Filter tab to open the Filter menu (Yellow box, Figure 3).

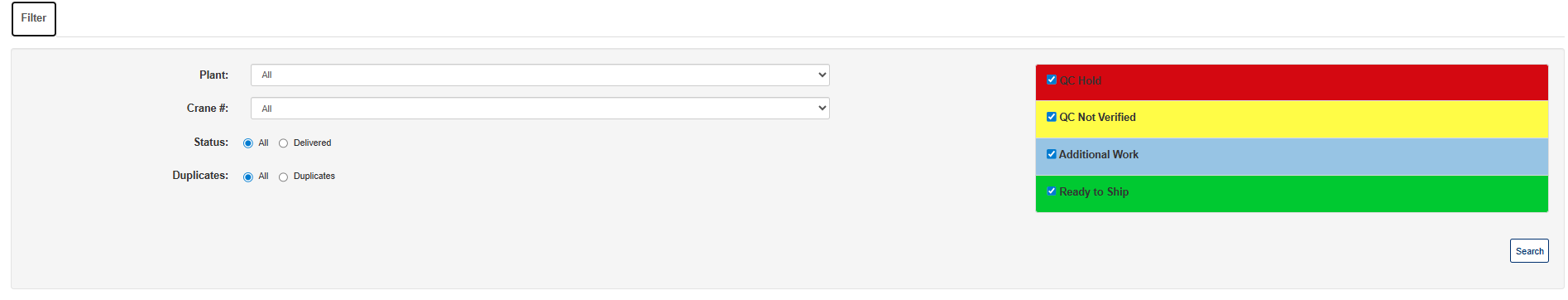

Search results can be filtered by a variety of variables, including piece mark statuses of QC Hold, QC Not Verified, Additional Work, and Ready to Ship (Figure 6).
Click the Search button to filter the list by selected variables.

Figure 6

Filtering the Erection Sequence Screen

Larger jobs will display long lists of pieces. To find specific pieces quickly, use the Filter tab on the Edit Erection Sequences screen.

Click on the Filter tab to open the Filter menu (Yellow box, Figure 4).

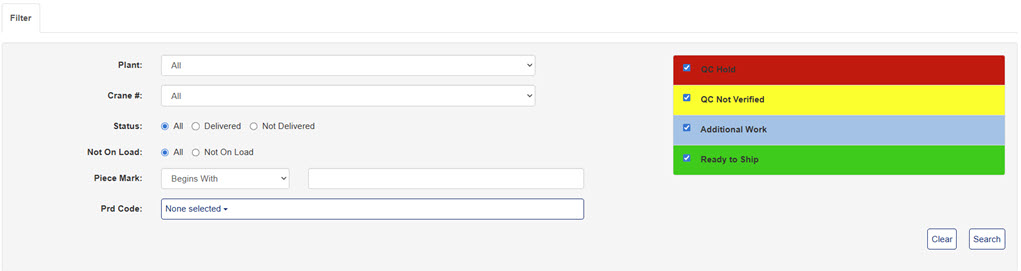

Search results can be filtered by a variety of variables, including piece mark statuses of QC Hold, QC Not Verified, Additional Work, and Ready to Ship (Figure 7).
Click the Search button to filter the list by selected variables.

Figure 7
