Pre-Pour Checklist

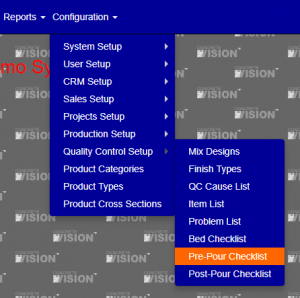

You access Pre-Pour Checklist from the Configuration > Quality Control Setup > Pre-Pour CheckList (Figure 1).

Figure 1

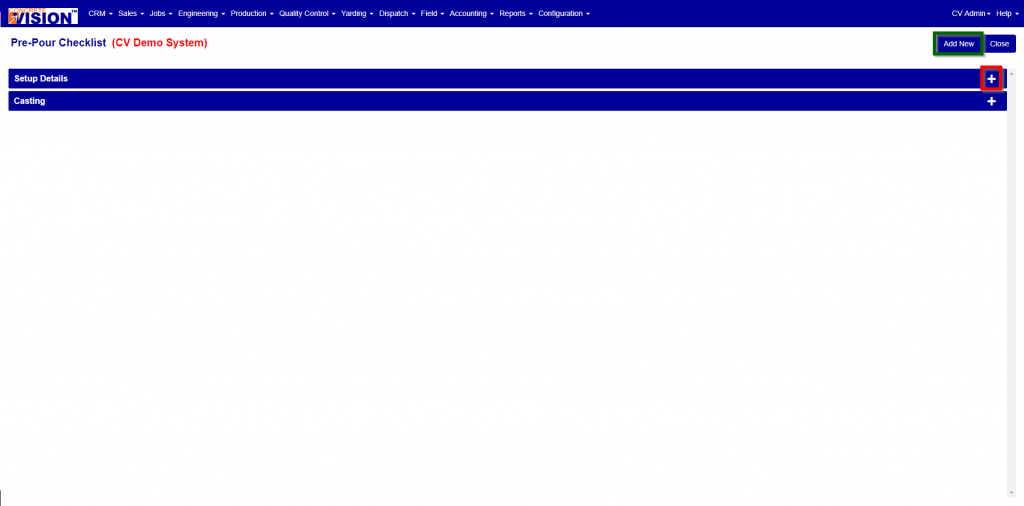

The Pre-Pour Checklist screen (see Figure 2) is where you can view and edit a checklist categories and checklist details.

Figure 2

Add New Category

1. Click on the Add New button (Green Box in Figure 2). The Add Pre-Pour Checklist Category Add/Edit screen (Figure 3) will open.
2. Enter a category name.
3. Enter an order by.
4. Click the “Save” button to save this information and view the information, or click the “Save & Close” to save this information and go back to the main screen.

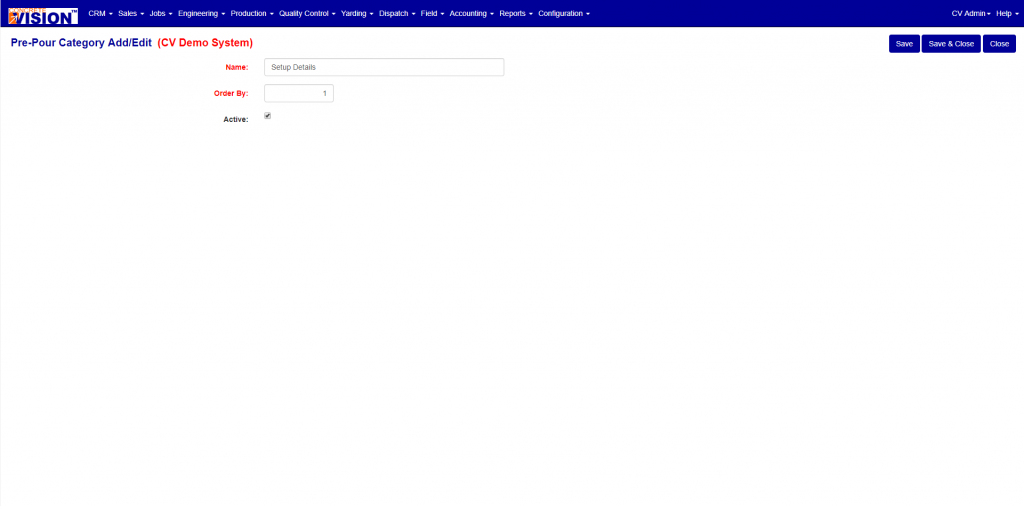

Figure 3

Edit Category

1. Click the “+” icon (Red Box in Figure 2).
2. In the first column select the edit button (Red Box in Figure 5).
3. You can modify the category name.
4. You can modify the order by.
5. You can activate or deactivated the category.

Figure 4

**If you don’t click on either the Save or Save and Close button and navigate off this screen, your changes will be lost.

Delete Category

To delete a category, just click on the delete button of the category (Green Box in Figure 2) you wish to delete. You can only delete a category that does not currently have any details assigned to it. If the category has details assigned to it, the delete button will be disabled.

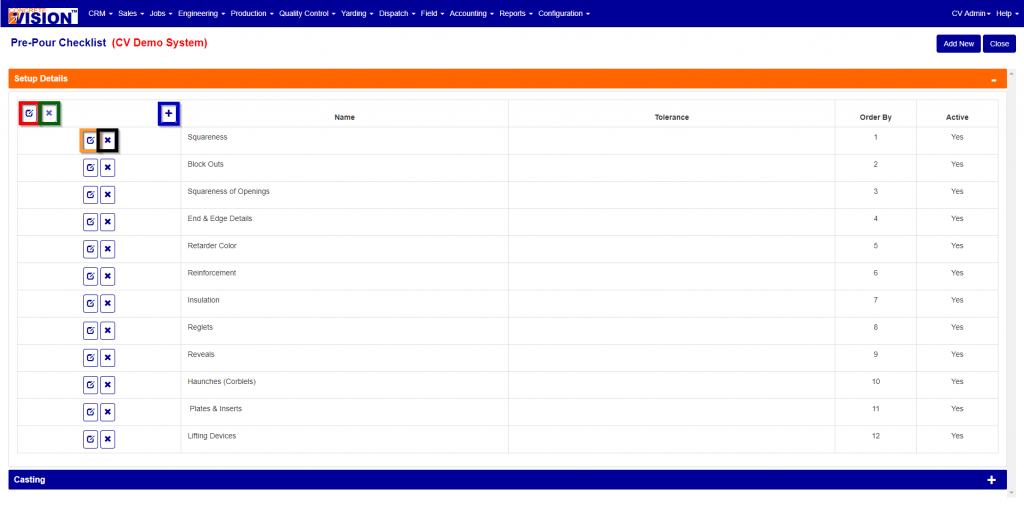

Figure 5

Add New Item

1. Click on the Add New button (Blue Box in Figure 5).
2. Enter an item name.
3. Enter a tolerance (Not Required).
4. Enter an order by.
5. Select the products that the item will be used with.
   1. By clicking on the check box in the Green Box in Figure 6 you will select all products.

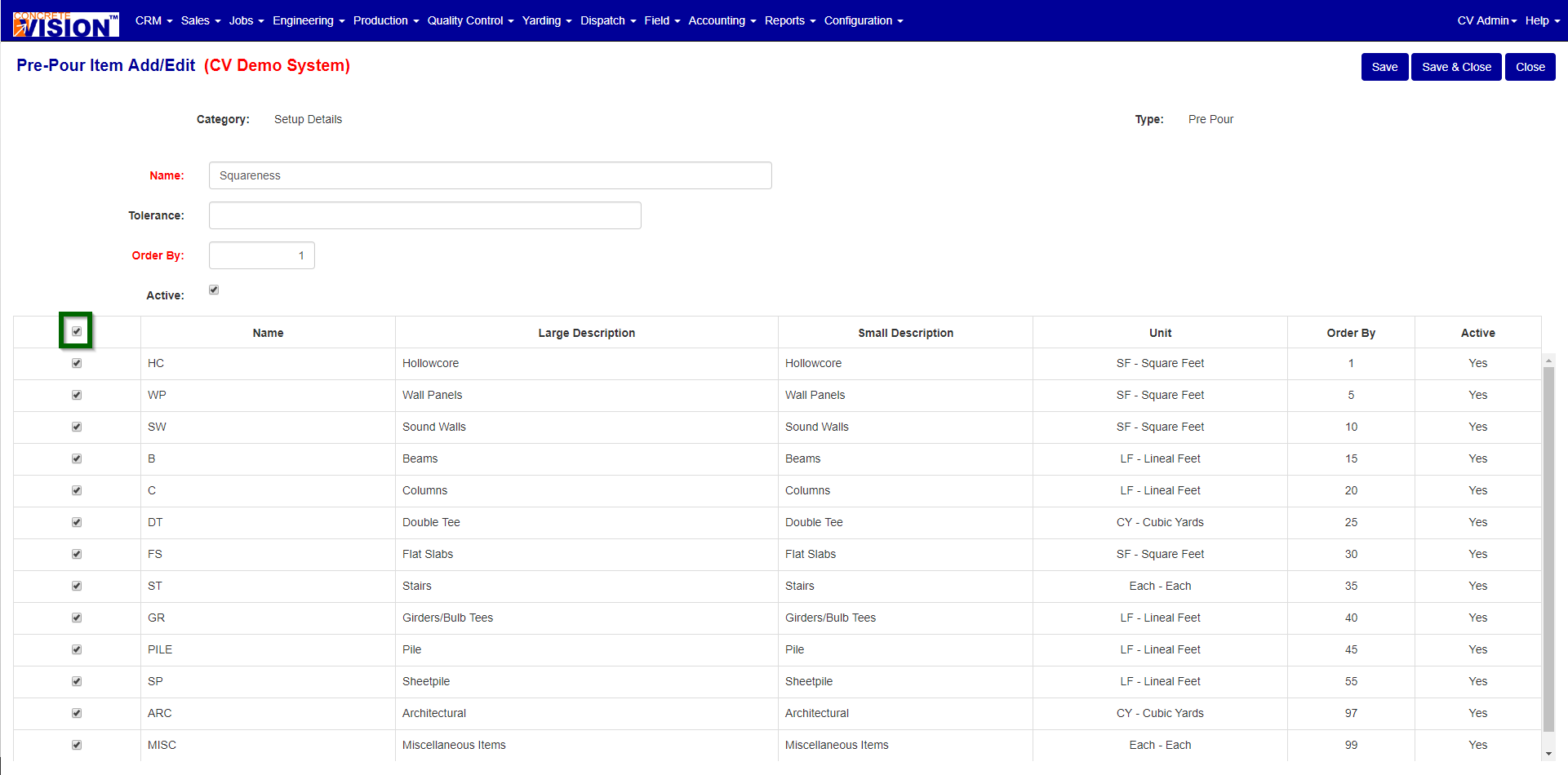

Figure 6

Edit Item

1. Click on the Edit Detail Button (Orange Button).
2. You can modify the item name.
3. You can modify the tolerance (Not Required).
4. You can modify the order by.
5. You can activity or deactivated the category.
6. Select the beds that the item will be used with.
   1. By clicking on the check box in the Green Box in Figure 7 you will select all products.

Figure 7

Delete Item

To delete item, just click on the delete button of the item (Black Box in Figure 5).
