Item List

Overview

The Quality Control Items screen is part of the Quality Control module setup. Items are similar to categories or types of problems on an NCR. The items are created on this screen, then display in Concrete Vision on the Production/Field NCRs - Add/Edit screen in the NCR Item dropdown selections (Figure 1).

Figure 1

Accessing the Quality Control Items Screen

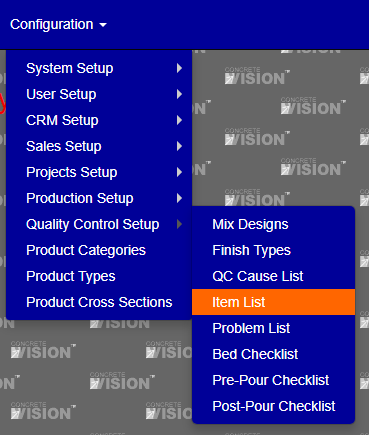

Navigate to Configuration > Quality Control Setup > Item List from the main menu (Figure 2).

Figure 2

Using the Quality Control Items Screen

The QC Items List screen (see Figure 3) is where you can add and edit QC Items.

Figure 3

Add a Quality Control Item

From the Quality Control Items screen (Figure 3):

1. Click the Add New Record button (green box in Figure 3).
2. In the dialog box that appears (Figure 4), enter a description for the item.
3. The Active box is checked by default to ensure the QC item will display in CV.
4. Click the Save button (Figure 4).

Figure 4

Edit a Quality Control Item

From the Quality Control Items screen (Figure 3):

1. Click the Edit icon (yellow box in Figure 3).
2. In the dialog box that appears, make any needed modifications.
3. Click the Save button (Figure 4).

Delete a Quality Control Item

From the Quality Control Items screen (Figure 3):

1. Click the Delete icon (red box in Figure 3).
2. In the dialog box that appears, confirm deletion.

Note: QC Items that are in use by Concrete Vision cannot be deleted.
